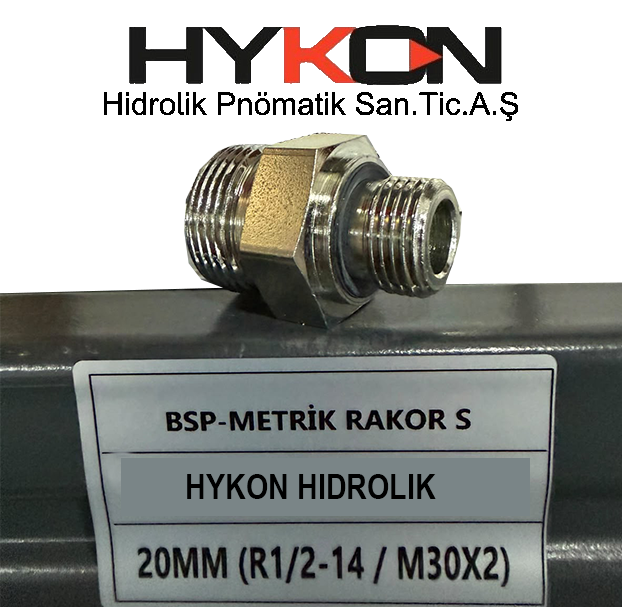

BSP METRIC FITTING (S) 20MM R1/2"-14 M30X2

Technical information

BSP Metric (S-Series, 20 mm tube diameter) hydraulic fittings with R1/2"-14 / M30x2 dimensions are adapters, elbows, or nipples featuring a BSP tapered/parallel thread (R1/2"-14) on one end and a heavy-duty series (S) metric thread (M30x2, 20S) on the other.

Technical Specifications • Male / BSP Thread Size (T1): R1/2"-14 (Tapered BSPT / Whitworth pipe thread, 14 threads per inch) • Metric Thread Size (T2): M30x2 (30 mm diameter, 2 mm pitch) • Series / Pipe Diameter: 20S Heavy Series (S-Type – compatible with 20 mm outer diameter pipe for high-pressure hydraulic applications) • Application Area: Hydraulic power units, presses, heavy machinery, and high-pressure fluid transfer lines • Material Composition: Typically manufactured from steel and protected against corrosion (rust) with a galvanized coating
